New » KTM » 990 Supermoto T
Model Quick Search

$15,298.00

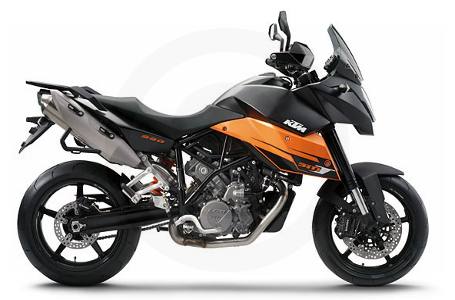

2010 KTM 990 Supermoto T
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The new 990 SMT is the perfect all around traveling bike. This bike comes standard with soft bags and carrier system, passenger handles, closed handguards, immobilizer system, large 5-gallon fuel tank, multifunctional speedometer, Marchesini front and rear wheels, Brembo front and rear brake system, stainless steel exhaust system, metal heat protector, smoked rear tail light, black swingarm, and fully adjustable WP monoshock (180mm of suspension travel) and fully adjustable 48mm USD WP front forks (160mm suspension travel).

  • Engine: Twin cylinder, 4-stroke, V 75°
  • Displacement: 999 cc
  • Weight: 196 kg (432 lbs.)
Engine
  • Engine type: Twin cylinder, 4-stroke, V 75°
  • Displacement: 999 cc
  • Bore x stroke: 101 x 62.4 mm (3.98 x 2.46 in.)
  • Performance (homologated): 85 kW @ 9000 rpm
  • Max. torque: 97 Nm @ 7000 rpm
  • Compression ratio: 11.5:1
  • Starter/Battery: E-Starter/12 V 11.2 Ah
  • Transmission: 6 gears, dog clutch engagement
  • Fuel Mixture Generation: Keihin EFI, throttle valve Ø 48 mm
  • Control: 4 V/DOHC
  • Lubrication: Pressure lubrication with 2 pumps
  • Engine lubrication: Motorex, fully synthetic, SAE 10W-50
  • Primary drive: 35:67
  • Final drive: 17:41
  • Cooling: Liquid cooled
  • Clutch: Wet multi-disc clutch, operated hydraulically
  • Motor Management: Keihin EMS
Chassis
  • Frame: Chromium-Molybdenum trellis frame, powder-coated
  • Subframe: Aluminium
  • Handlebar: Aluminium, Ø 28/22 mm (1.10/0.87 in.), tapered
  • Front suspension: WP USD Ø 48 mm (1.89 in.)
  • Rear suspension: WP mono shock
  • Suspension travel front/rear: 160/180 mm (6.3/7.09 in.)
  • Front brake: 2 x Brembo four piston fixed-caliper, radially bolted, brake disc Ø 305 mm, floating
  • Rear brake: Brembo 2-piston floating caliper, brake disc Ø 240 mm (9.45 in.)
  • Rims, front/rear: Cast aluminium wheels 3.5 x 17 in.; 5.5 x 17 in.
  • Tires, front/rear: 120/70 ZR 17 in.; 180/55 ZR 17 in.
  • Chain: X-Ring 5/8 x 5/16 in.
  • Main silencer: Twin stainless-steel silencer with regulated catalytic converters
  • Steering head angle: 65.6°
  • Trail: 109 mm (4.29 in.)
  • Wheel base: 1505 ± 15 mm (59.25 ± 0.95 in.)
  • Ground clearance (unloaded): 195 mm (7.68 in.)
  • Seat height: 855 mm (33.66 in.)
  • Tank capacity: approx. 19 liters (5.02 gal.)/3.7 liters reserve (0.98 gal.)
  • Weight (no fuel): approx. 196 kg (432 lbs.)

Specifications

Engine
Engine Type Twin cylinder, 4-stroke, V 75°
Displacement 999 cc
Bore and Stroke 101 x 62.4 mm (3.98 x 2.46 in.)
Cooling Liquid cooled
Compression Ratio 11.5:1
Chassis
Front Suspension WP USD Ø 48 mm (1.89 in.)
Front Brakes 2 x Brembo four piston fixed-caliper, radially bolted, brake disc Ø 305 mm, floating
Front Tire 120/70 ZR 17 in.
Rear Suspension WP mono shock
Rear Brakes Brembo 2-piston floating caliper, brake disc Ø 240 mm (9.45 in.)
Rear Tire 180/55 ZR 17 in.
Dimensions
Dry Weight approx. 196 kg (432 lbs.)
Fuel Capacity approx. 19 liters (5.02 gal.)/3.7 liters reserve (0.98 gal.)
Wheelbase 1505 ± 15 mm (59.25 ± 0.95 in.)
Seat Height 855 mm (33.66 in.)
Trail 109 mm (4.29 in.)
Transmission
Transmission 6 gears, dog clutch engagement
Final Drive 17:41

Compare Models

 Print








Year 2010
Manufacturer KTM
Model 990 Supermoto T
Style Sport
Chassis
Front Suspension WP USD Ø 48 mm (1.89 in.)
Front Brakes 2 x Brembo four piston fixed-caliper, radially bolted, brake disc Ø 305 mm, floating
Front Tire 120/70 ZR 17 in.
Rear Suspension WP mono shock
Rear Brakes Brembo 2-piston floating caliper, brake disc Ø 240 mm (9.45 in.)
Rear Tire 180/55 ZR 17 in.
Dimensions
Dry Weight approx. 196 kg (432 lbs.)
Fuel Capacity approx. 19 liters (5.02 gal.)/3.7 liters reserve (0.98 gal.)
Wheelbase 1505 ± 15 mm (59.25 ± 0.95 in.)
MPG
Seat Height 855 mm (33.66 in.)
Trail 109 mm (4.29 in.)
Rake
Engine
Engine Type Twin cylinder, 4-stroke, V 75°
Displacement 999 cc
Bore and Stroke 101 x 62.4 mm (3.98 x 2.46 in.)
Cooling Liquid cooled
Compression Ratio 11.5:1
Fuel System
Ignition
General
Speedometer
Tachometer
Odometer
Colors
Warranty
Transmission
Transmission 6 gears, dog clutch engagement
Final Drive 17:41
